1000421

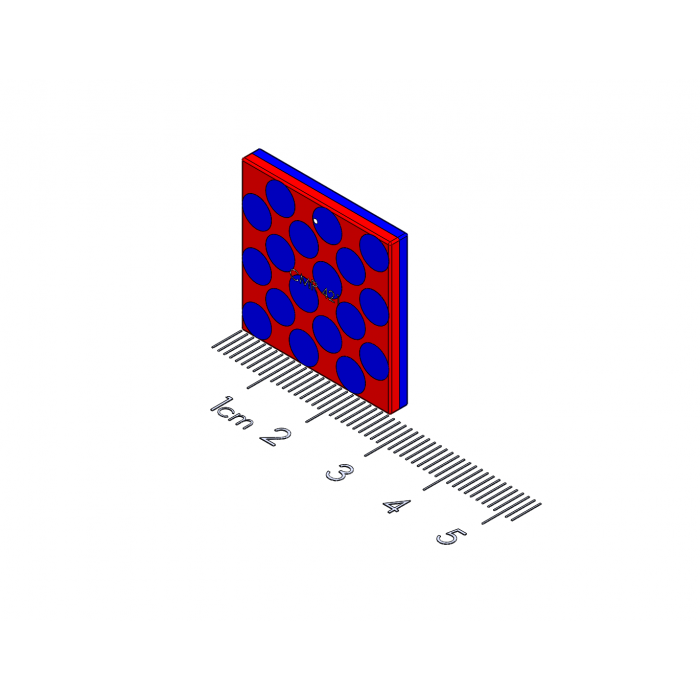

Attach Polymagnet - short range - 2D shear resistance
This magnet pairs with itself and the following:
1000320
This Polymagnet provides high holding force in magnet-to-magnet and magnet-to-steel applications, at design gaps from 0 - 0.75 mm. It also provides enhanced two-dimensional shear resistance in magnet-to-magnet applications.
More Information
SKU: 1000421
Meta Description: 1000421
Part number: 1000421
Pairs with: 1000421
Availability date: Released
Base Polarity: North
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N40
Temperature Rating (C): 80
Temperature Grade: Standard
Shape type: Square
Length (inch): 1
Width (inch): 1
Thickness (inch): 0.125
Mass (oz): 0.5358
Length (mm): 25.4
Width (mm): 25.4
Thickness (mm): 3.175
Mass (g): 15.19
Countersink: 0
Magnet Family: Attach
Length fractional (inch): '1"
Alignment Functionality: Radial Alignment
Shear resistance: Two Dimensional Shear
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 180
magnet_plate_length_range: 25.4
Indexing Feature: 0
Pairs well with
1000421
