1001069

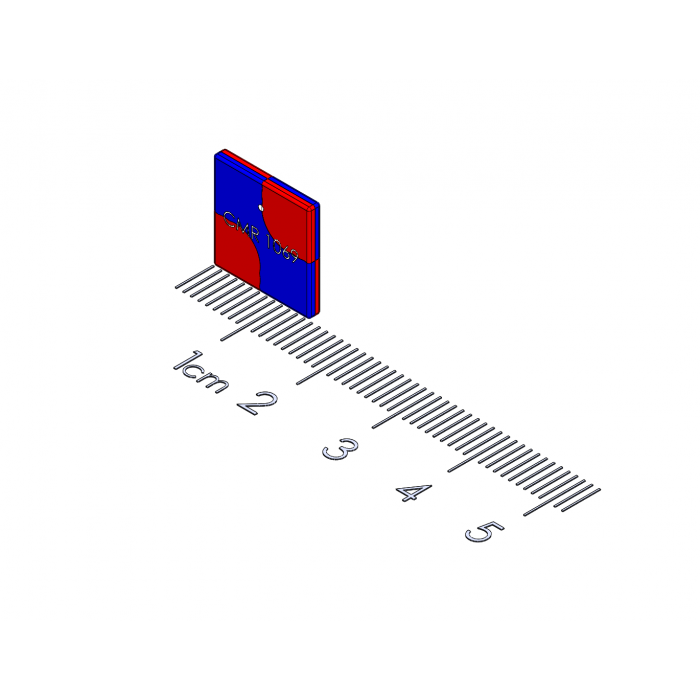

Attach Polymagnet - medium range - 2D shear resistance
This magnet pairs with itself and the following: 1001068
This Polymagnet provides high holding force in magnet to magnet and magnet to steel applications, at design gaps from 0.75 - 1.5mm. It provides enhanced two dimensional shear resistance in magnet to magnet applications.
More Information
SKU 1001069
Meta Description 1001069
Part number 1001069
Pairs with 1001069
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type Square
Length (inch) 0.5
Width (inch) 0.5
Thickness (inch) 0.063
Mass (oz) 0
Length (mm) 12.7
Width (mm) 12.7
Thickness (mm) 1.59
Mass (g) 0
Countersink 0
Magnet Family Attach
Length fractional (inch) 1/2"
Alignment Functionality 0
Shear resistance Two Dimensional Shear
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry 90
magnet_plate_length_range 12.7
Indexing Feature 0
