1002277

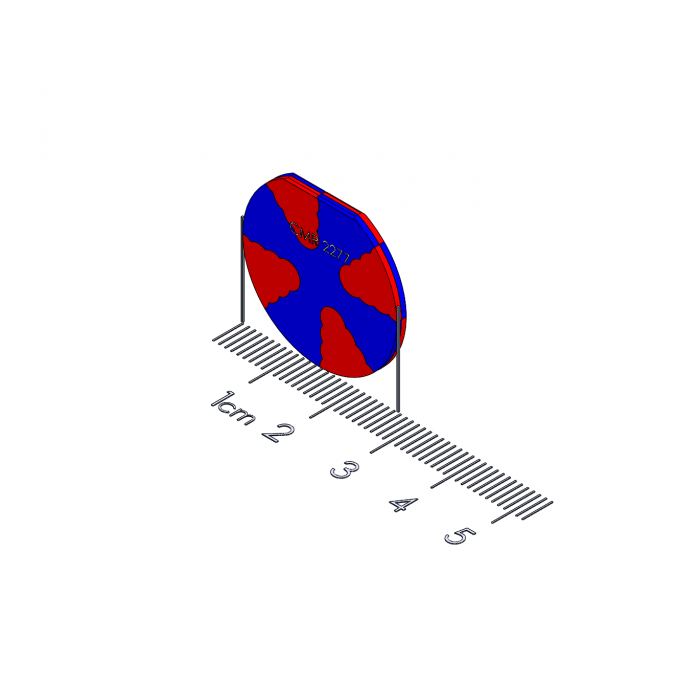

Torque Polymagnet - twist release - 45 degree
This magnet pairs with itself and the following:
1002232
This torque Polymagnet features rotational alignment and torque resistance. A pair of 1002277 Polymagnets exhibits a high attract force when rotationally aligned, and a high repel force when rotated 45 degrees in either direction, forming a twist-release mechanism.
More Information
SKU 1002277
Meta Description 1002277
Part number 1002277
Pairs with 1002277
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type D-shape
Length (inch) 1
Thickness (inch) 0.062
Outer diameter (inch) 1
Mass (oz) 0.2081
Length (mm) 25.4
Thickness (mm) 1.587
Outer diameter (mm) 25.4
Mass (g) 5.9
Countersink 0
Magnet Family Torque
Length fractional (inch) 1"
Alignment Functionality Rotational Alignment
Shear resistance Rotational Shear Resistance
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry 0
magnet_dshape_length_range 1
Indexing Feature D-shape
Pairs well with
1002277
