1000620

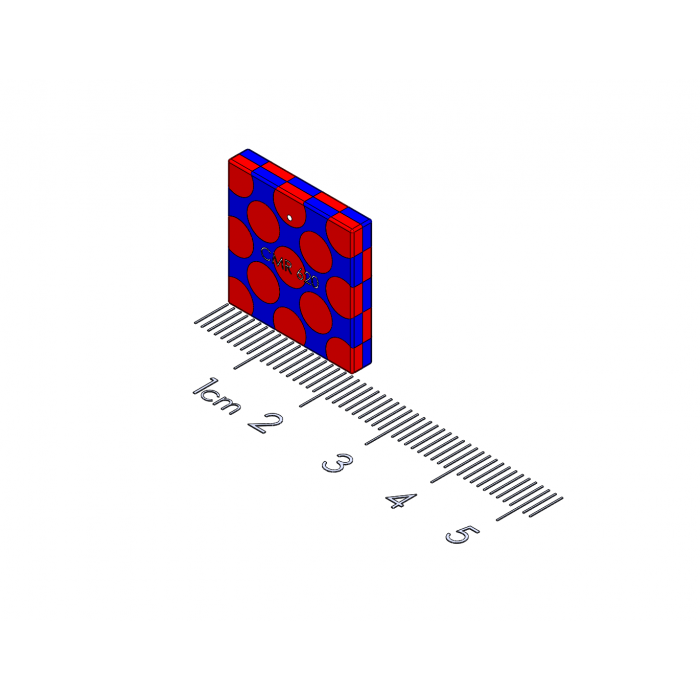

Attach Polymagnet - short range - 2D shear resistance
This magnet pairs with itself and the following:
This Polymagnet provides high holding force in magnet to magnet and magnet to steel applications, at design gaps from 0 - 0.75 mm. It also provides enhanced two dimensional shear resistance in magnet to magnet applications.
More Information
SKU: 1000620
Meta Description: 1000620
Part number: 1000620
Pairs with: 1000620
Availability date: Released
Base Polarity: South
Magnetization orientation: Through Thickness
Coating : Ni-Cu-Ni
Material : NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Shape type: Square
Length (inch): 0.75
Width (inch): 0.75
Thickness (inch): 0.125
Mass (oz): 0.2984
Length (mm): 19.05
Width (mm): 19.05
Thickness (mm): 3.175
Mass (g:) 8.46
Countersink: 0
Magnet Family: Attach
Length fractional (inch): '3/4"
Alignment Functionality: 0
Shear resistance: Two Dimensional Shear
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 90
magnet_plate_length_range: 19.05
Indexing Feature: 0
