1001080

SKU: 1001080
Meta Description: 1001080
Part number : 1001080
Pairs with: 1001080
Availability date: Released
Base Polarity: South
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Dimensional tolerance: 0.127

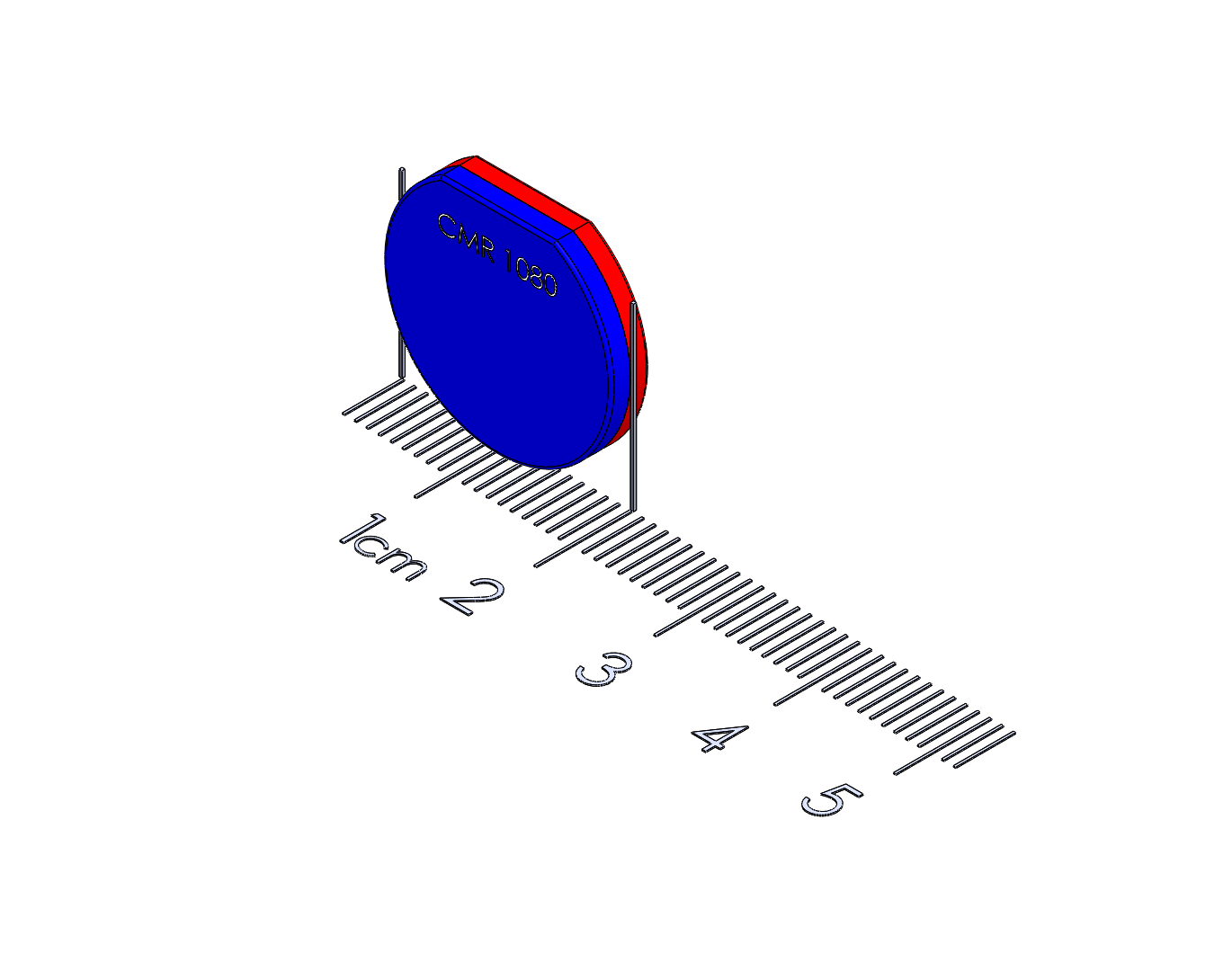

Shape type: D-Shape
Length (inch): 0.75
Thickness (inch): 0.125
Mass (oz): 0.2409
Thickness (mm): 3.175
Outer diameter (mm): 19.05
Mass (g): 6.59
Countersink: 0
Magnet Family: Conventional
Length fractional (inch): 3/4"
Outer diameter fractional (inch): 3/4"
Thickness fractional (inch): 1/8"
Alignment Functionality: 0
Shear resistance: 0
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 0
magnet_shipping_weight: 0.05
magnet_dshape_innerdiameter: 1
magnet_dshape_length_range: 1
magnet_dshape_od_range: 19.05
magnet_dshape_thickness_mm: 3.175
magnet_disc_od_range: 19.05
magnet_disc_length_range: 1
magnet_dshape_width_range: 1
Indexing Feature: 0
