1001129

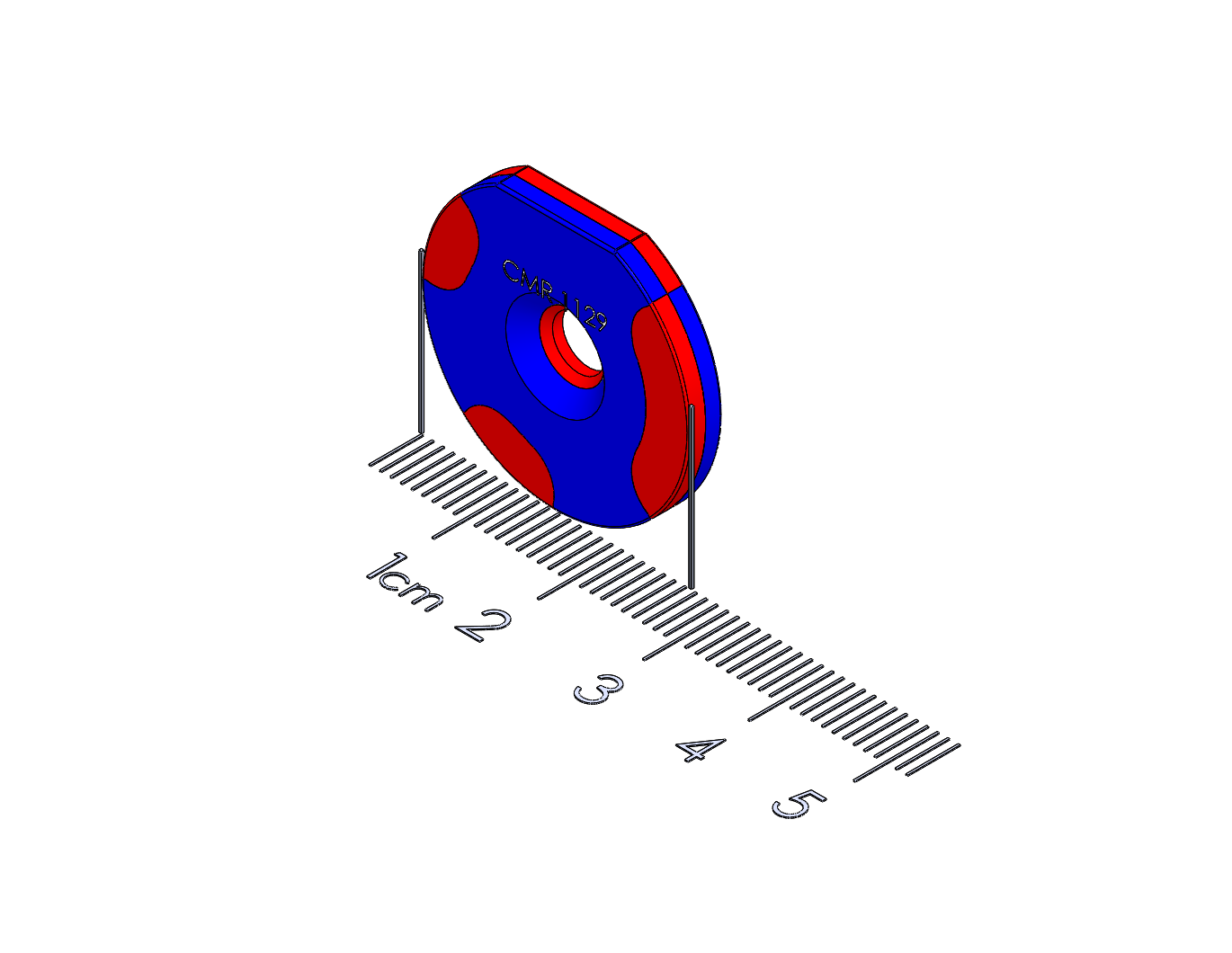

Twist Release Polymagnet with Detent - B
This magnet must be paired with the following: 1001128
The Twist-Release Polymagnets with Detent exhibit a high attract force when rotationally aligned, and a high repel force when rotated 90 degrees in either direction, forming a twist-release mechanism. The detent function keeps the pair in the release position until explicitly rotated back to the latch position.
More Information
SKU: 1001129
Meta Description: 1001129
Part number : 1001129
Pairs with: 1001129
Availability date: Released
Base Polarity: South
Magnetization orientation:Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade:Standard
Dimension tolerance: 0.127
Shape type: D-Shape
Length (inch): 1
Thickness (inch):0.125
Outer diameter (inch): 1
Mass (oz): 0.35
Length (mm): 25.4
Thickness (mm): 3.175
Mass (g): 9.9
Countersink: M4
Magnet Family: Latch
Length fractional (inch): 1"
peak force: 57.87
Thickness fractional (inch): 1/8"
Shear resistance: 0
Latch Functionality: Twist Release
Spring Functionality: Spring
Torque Functionality: 0
Magnet Symmetry:0
magnet_dshape_inner diameter 1
magnet_dshape_length_rang 1
magnet_dshape_od_range 25.4
magnet_dshape_thickness_mm 3.175
magnet_dshape_width_range 1
Indexing Feature: D-shape
Pairs well with
1001129
