1002224

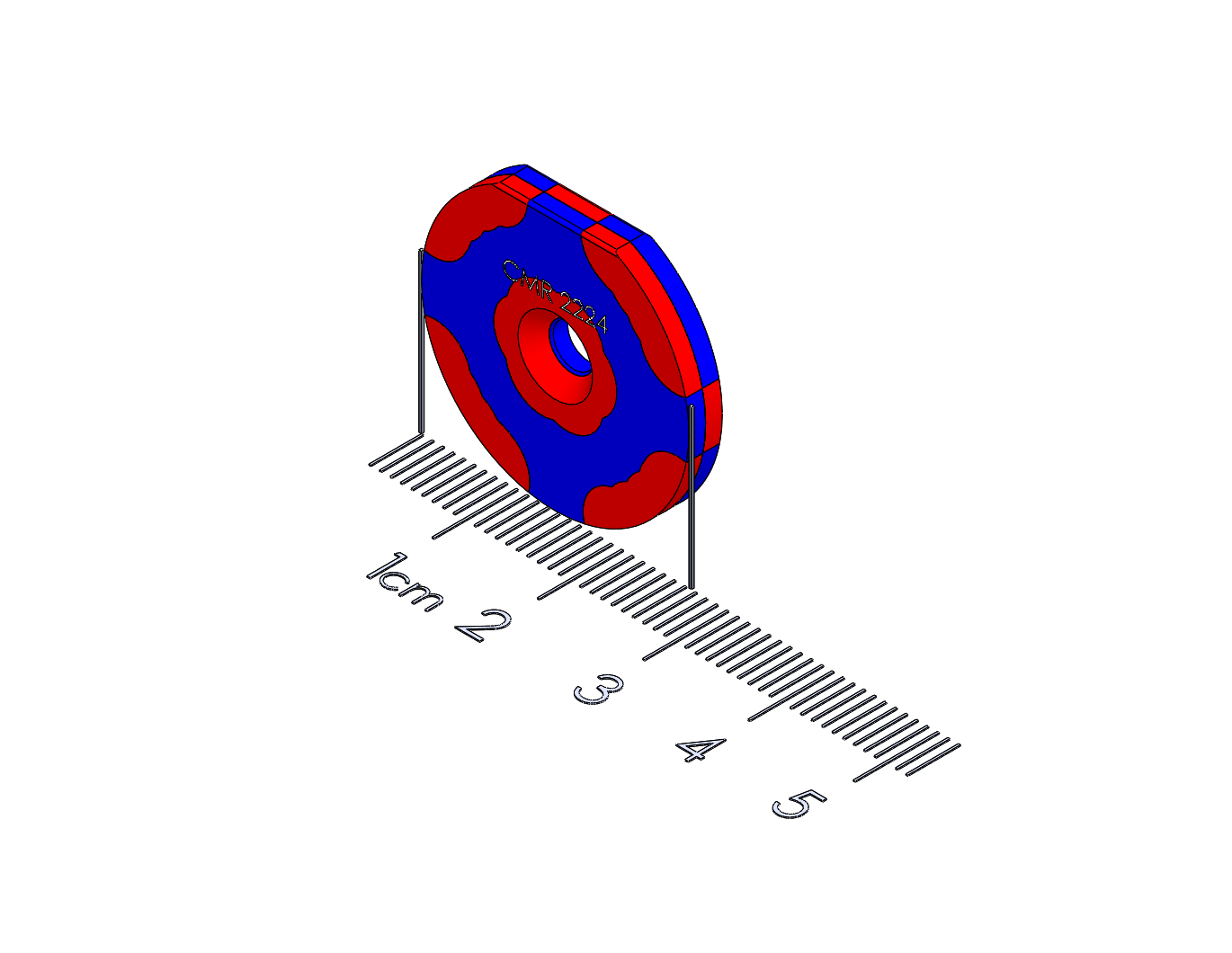

Detent Polymagnet - 4 positions
This magnet must be paired with the following: 1002222, 1002223
Detent Polymagnets are engineered to possess a certain number of attract and repel positions ("bumps") which provide tactile feedback as the magnets are rotated.
More Information
SKU: 1002224
Meta Description: 1002224
Part number : 1002224
Pairs with: 1002224
Availability date: Released
Base Polarity: South
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Dimension tolerance: 0.127
Shape type: D-shape
Length (inch): 1
Thickness (inch): 0.125
Outer diameter (inch): 1
Mass (oz): 0.3986
Length (mm): 25.4
Thickness (mm): 3.175
Mass (g): 11.3
Countersink: #6
Magnet Family: Torque
Length fractional (inch): 1"
peak force: 113.68
Thickness fractional (inch): 1/8"
Shear resistance:0
Latch Functionality:0
Spring Functionality:0
Torque Functionality:0
Magnet Symmetry:0
magnet_shipping_weight: 0.05
magnet_dshape_innerdiameter 1
magnet_dshape_od_range 25.4
magnet_dshape_length_range 1
magnet_dshape_thickness_mm 3.175
magnet_dshape_width_range 1
Indexing Feature: D-shape
Pairs well with
1002224
