Alignment Polymagnet - 2D
This magnet must be paired with the following:

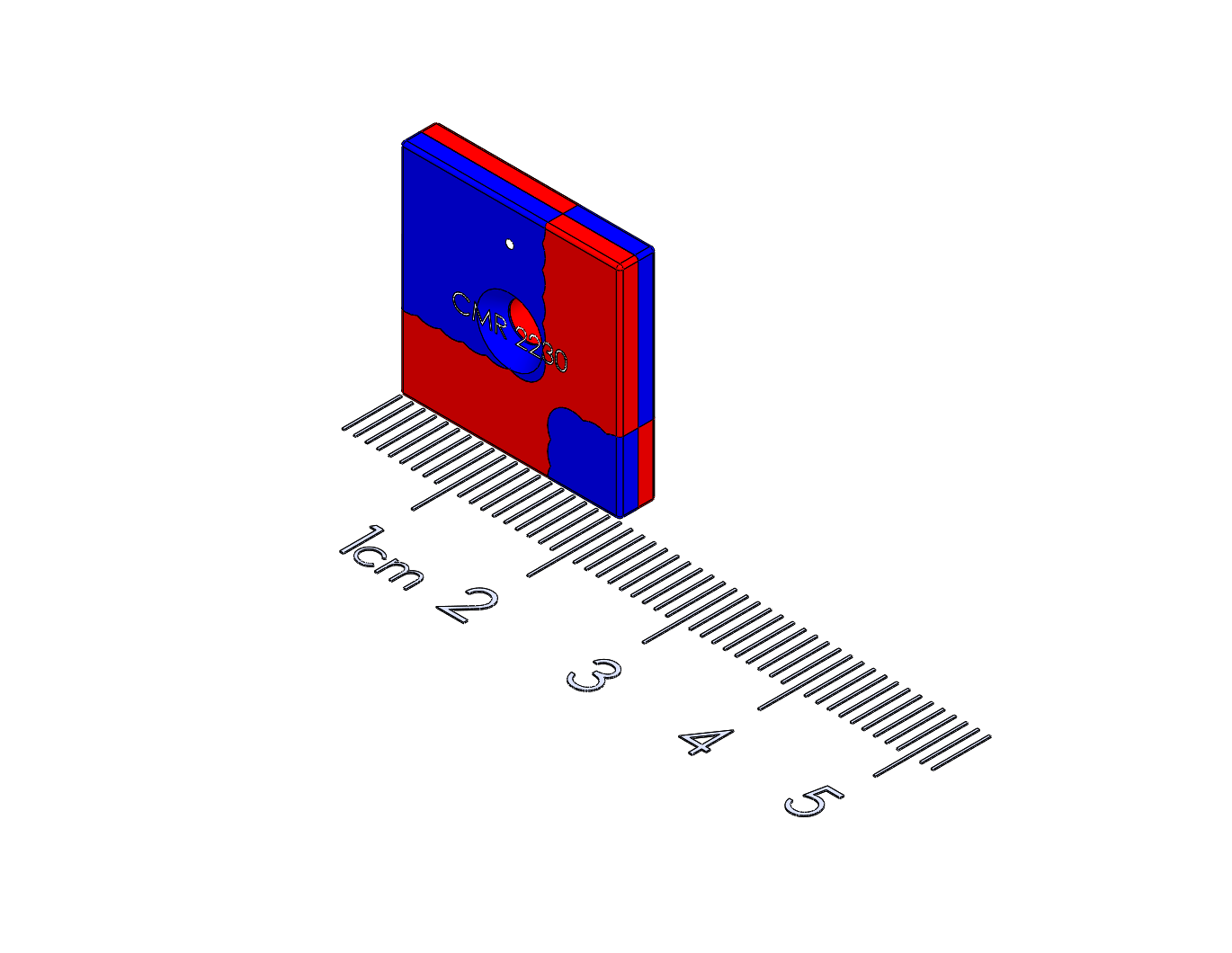

This Polymagnet provides a two dimensional alignment function as well as shear resistance along its length and width in magnet to magnet applications.
More Information
SKU: 1002230
Meta Description: 1002230
Part number : 1002230
Pairs with: 1002229
Availability date: Released
Base Polarity: North
Magnetization orientation:Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Dimension tolerance: 0.127
Shape type: Square
Length (inch):0.75
Width (inch):0.75
Thickness (inch): 0.125
Mass (oz): 0.2903
Length (mm): 19.05
Width (mm): 19.05
Thickness (mm): 3.175
Mass (g): 8.23
Countersink: #4
Magnet Family: Align
Length fractional (inch): 3/4"
Width fractional (inch): 3/4"
peak force: 124.64
Thickness fractional (inch): 1/8"
Shear resistance: Two Dimensional Shear Resistance
Latch Functionality:0
Spring Functionality:0
Torque Functionality:0
Magnet Symmetry:0
magnet_shipping_weight: 0.05
magnet_plate_thickness_mm 3.175
magnet_plate_od_range 1
magnet_plate_length_range 19.05
magnet_plate_innerdiameter 1
Indexing Feature:0
