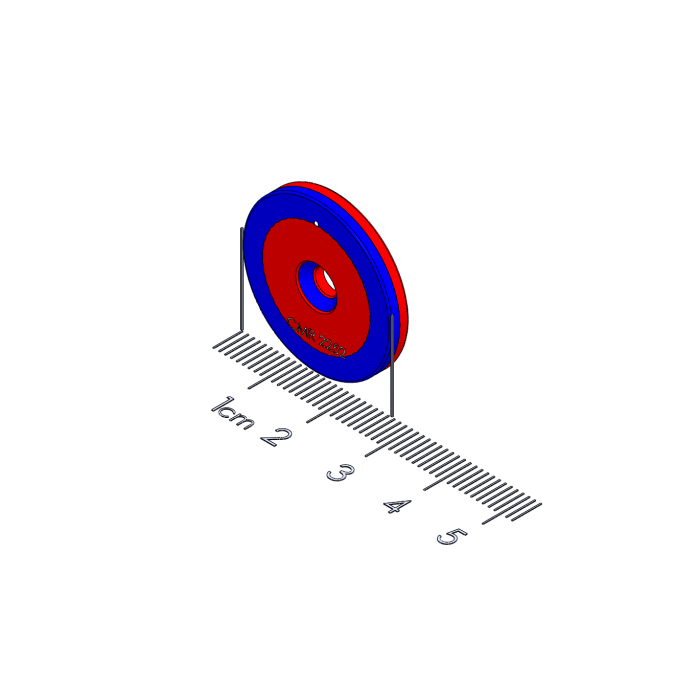

1002252
Attach Polymagnet - short range - centering
This magnet can be paired with the following: 1002251
This Polymagnet provides a high holding force in magnet-to-magnet and magnet-to-steel applications, at design gaps from 0 - 0.75 mm. It also provides radial shear resistance in magnet-to-magnet applications.
More Information
SKU 1002252
Meta Description 1002252
Part number 1002252
Pairs with 1002251
Availability date Released
Base Polarity North
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type Disc
Thickness (inch) 0.125
Outer diameter (inch) 1
Mass (oz) 0.4088
Thickness (mm) 3.175
Outer diameter (mm) 25.4
Mass (g) 11.59
Countersink #6
Magnet Family Attach
Alignment Functionality Radial Alignment
Shear resistance Radial Shear Resistance
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry Radial
magnet_disc_od_range 25.4
magnet_disc_length_range 1
Indexing Feature 0
