1002253

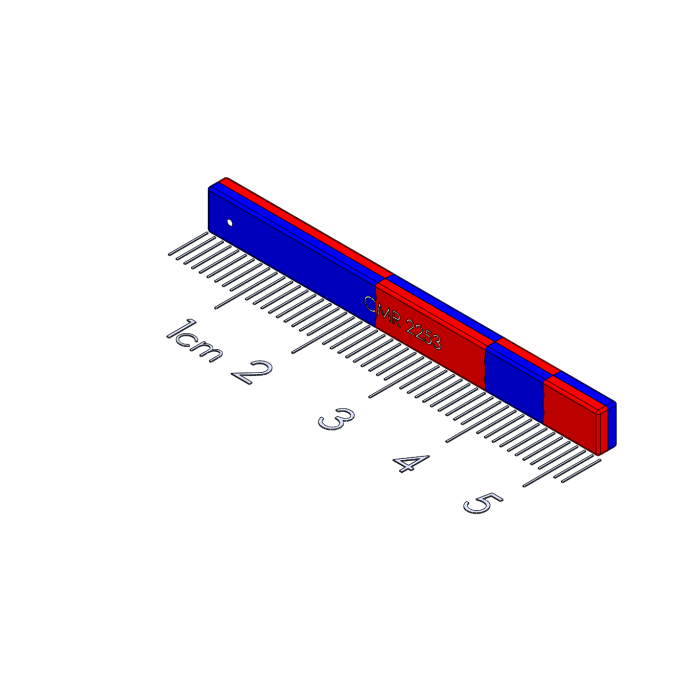

Alignment Polymagnet
This magnet pairs with itself.
This Polymagnet provides an alignment function as well as shear resistance along its long axis in magnet-to-magnet applications. It is optimized for a 2mm design gap.
More Information
SKU 1002253
Meta Description 1002253
Part number 1002253
Pairs with 1002253
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type Rectangle
Length (inch) 2
Width (inch) 0.2
Thickness (inch) 0.1
Mass (oz) 0.1735
Length (mm) 50.8
Width (mm) 5.08
Thickness (mm) 2.54
Mass (g) 4.92
Countersink 0
Magnet Family Align
Length fractional (inch) 2"
Alignment Functionality One Dimensional Alignment
Shear resistance One Dimensional Shear Resistance
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry 0
magnet_plate_length_range 50.8
Indexing Feature 0
