1002274

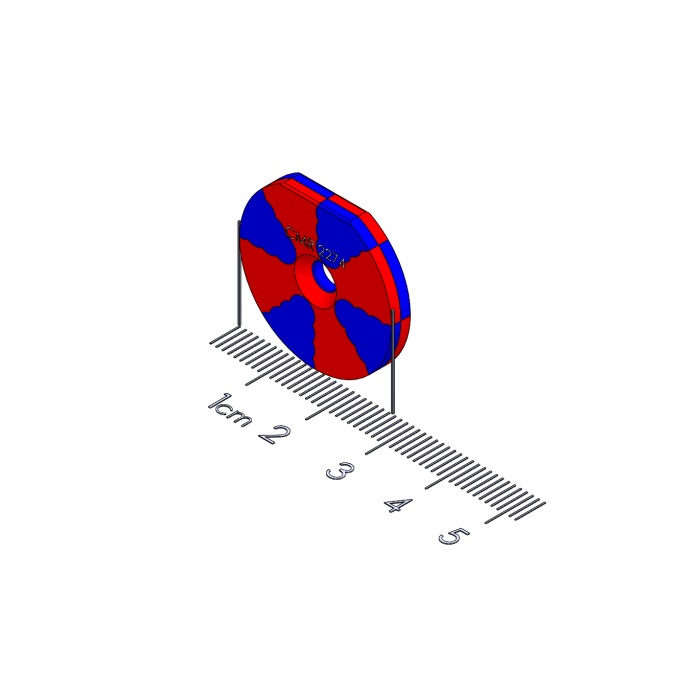

Torque Polymagnet - twist release - 45 degree
This magnet must be pairs with itself:
This Polymagnet has been removed from the from the catalog in favor of the 1002232 with different countersink size. 1002274 can still be ordered in volumes >100 and with a 6 week lead time by emailing orders@polymagnet.com
This torque Polymagnet features rotational alignment and torque resistance. The pair of 1002274 exhibits a high attract force when rotationally aligned, and a high repel force when rotated 45 degrees in either direction, forming a twist-release mechanism.
More Information
SKU: 1000399
Meta Description: 1000399
Part number : 1000399
Pairs with: 1000399
Availability date: Released
Base Polarity: North
Magnetization orientation: Axial
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N40
Temperature Rating (C): 80
Temperature Grade: Standard
Shape type: Disc
Thickness (inch): 0.125
Outer diameter (inch): 0.75
Mass (oz): 0.2409
Thickness (mm): 3.175
Outer diameter (mm): 19.05
Mass (g): 6.83
Countersink: 0
Magnet Family: Attach
Alignment Functionality: Radial Alignment
Shear resistance: Radial Shear
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: Radial
magnet_disc_od_range: 19.05
magnet_disc_length_range: 1
Indexing Feature: 0
